Get Ultimate Power and Performance on Your Ranger XD
Your Ranger XD 1500 works hard and plays harder. Take its performance over the top with SuperATVs Polaris Ranger XD 1500 6 Portal Gear Lift. Its the ultimate combination of power and performance. The 6-inch lift gives you massive ground clearance and room for huge tires. For ultimate strength; upgrade to our dual idlers. Your choice of 30%; 45%; or 60% gear reductions gives you the torque to tackle muddy creeks; rocky climbs; and everything in between.
What Is a Dual Idler?
Perfection takes time. After years of research and development; weve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box; the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears dont do a thing if theyre not mated perfectly; though. Precision CNC grinding ensures ours do. Our gears are made from the industrys toughest 9310 steel alloy. Didnt think dual idlers mattered? With GDPs quality and experience; they finally do.
Get the Gear Reduction You Need
You ride your Ranger XD 1500 your way; so choose the gear reduction that matches your style. A 30% gear reduction balances a big torque boost with a minor reduction in top speed. If you want to use bigger tires to dominate the mud hole or creep over rocks; choose a 45% reduction. For maximum power to run massive tires and conquer mud; 60% is the best option for you.
A Gear Reduction That Protects Your Drivetrain
When youre throwing all that extra weight around; you can beat your drivetrain to hell. GDP Portals put the gear reduction in the hub; so your entire drivetrain gets protected from extra wear. Plus; this Ranger XD 1500 portal gear lift maintains your factory suspension to give you cooler-running axles.
GDP Portals Are as Tough as They Get
These Ranger 1500 portals are designed for hard rides. We use 5/16 advanced steel alloy backing plates and durable aluminum housings to withstand any type of abuse.
Advanced Gaskets; Seals; and Bearings
Our portals use:
Add a Frame Stiffener
A 6 portal lift and oversized tires can take your Polaris Ranger XD 1500 to the next level; but they also add extra stress to the machines frame. To keep your rig strong and ready for anything; we recommend installing a SuperATV Frame Stiffener when you add your new portals. Its tough enough to keep your frame from deforming under heavy use.
Top-Rated Customer Service
Still need a little help getting exactly what you need? No worries—weve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.
Kit Includes:
Patent # 11;299;042
Patent # 11;318;787

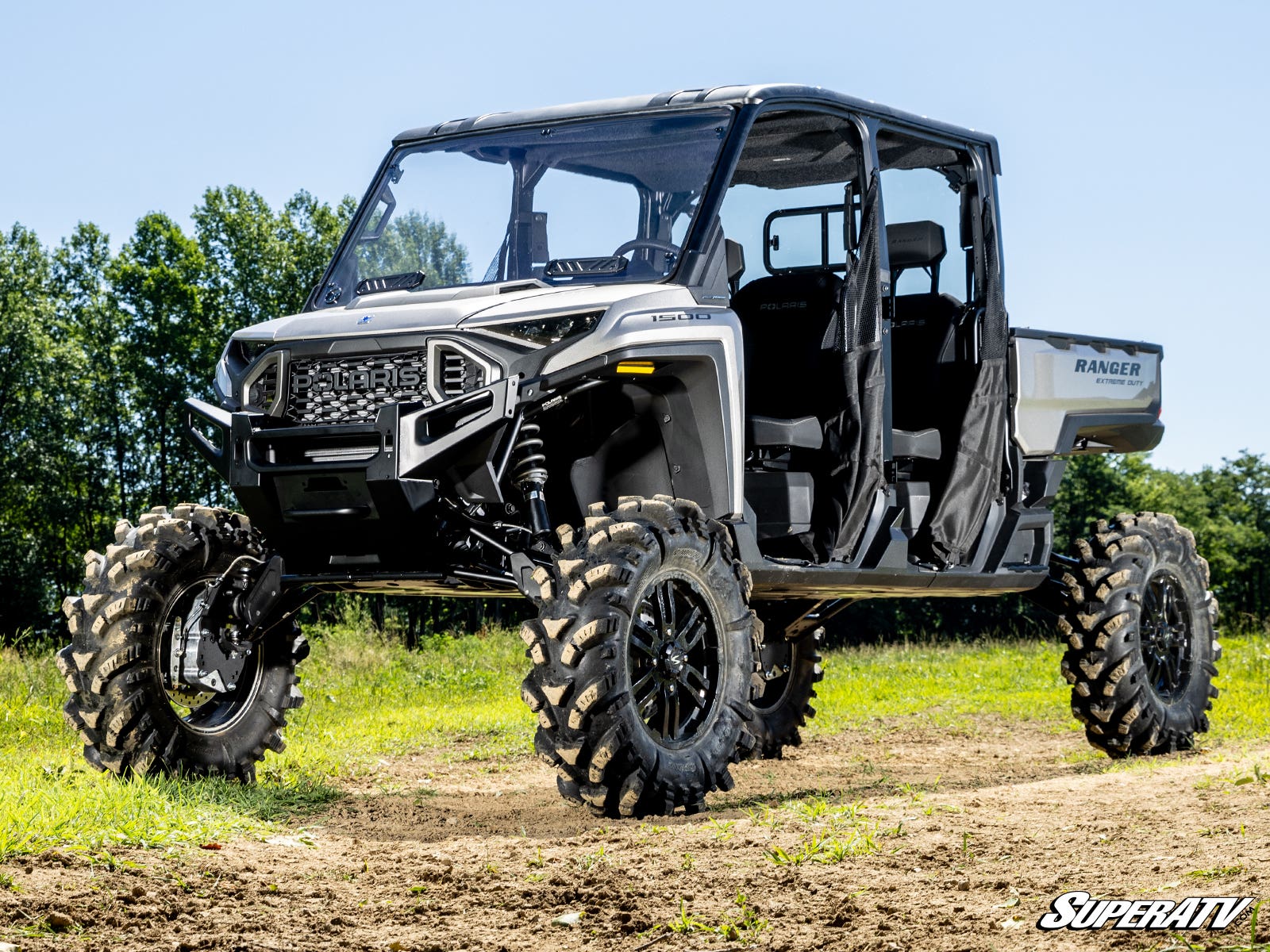

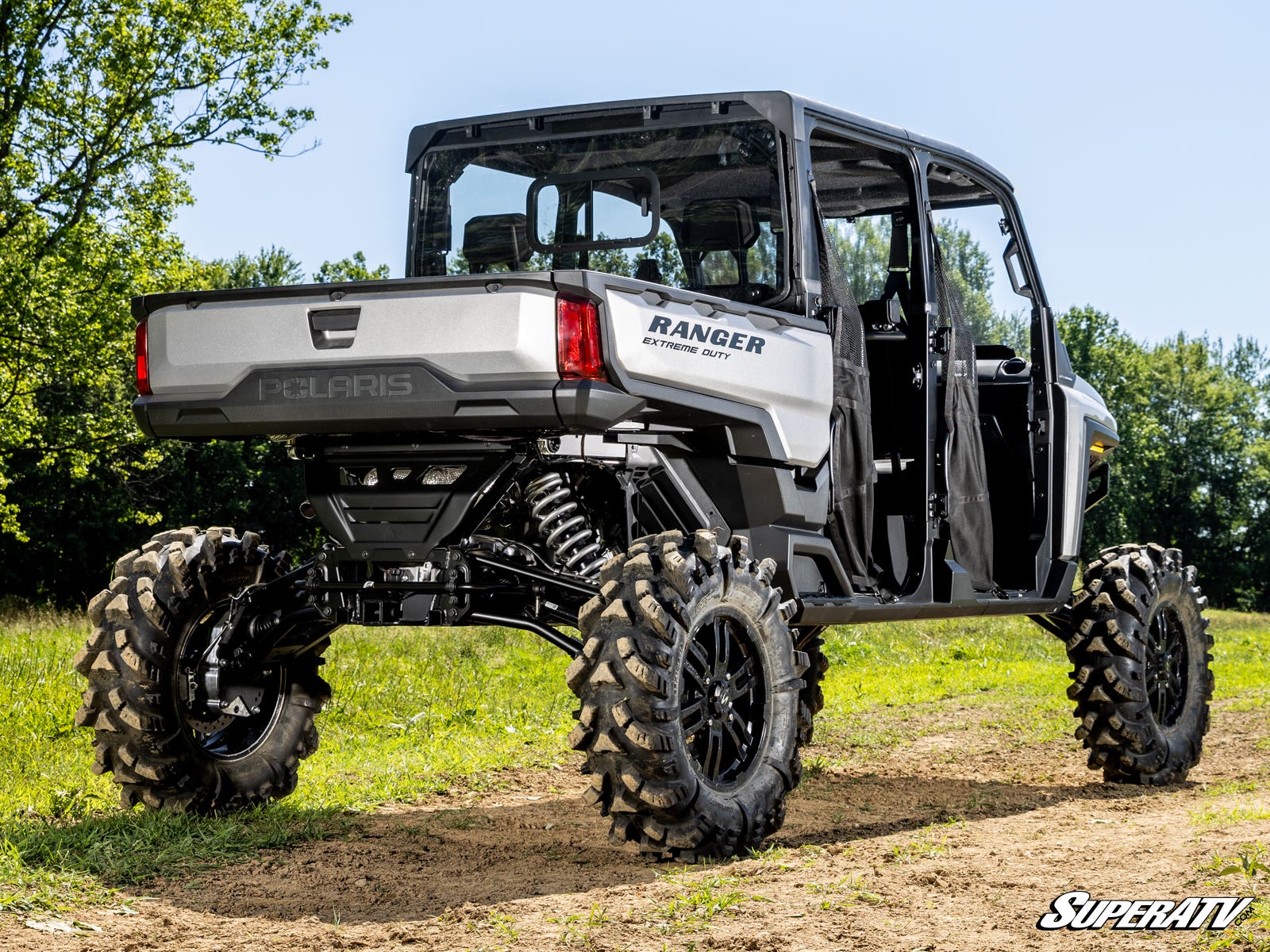

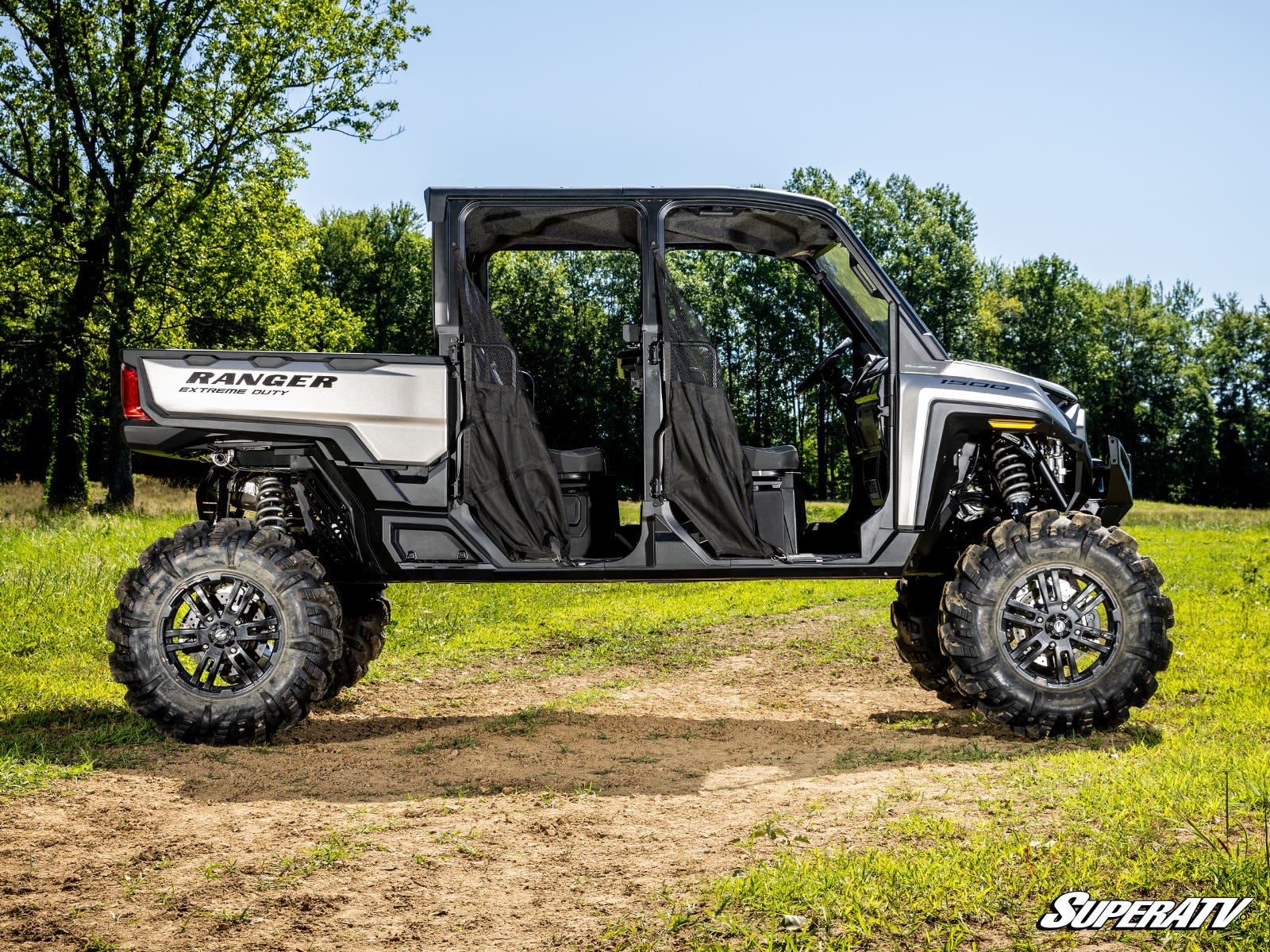

Your Ranger XD 1500 works hard and plays harder. Take its performance over the top with SuperATVs Polaris Ranger XD 1500 6 Portal Gear Lift. Its the ultimate combination of power and performance. The 6-inch lift gives you massive ground clearance and room for huge tires. For ultimate strength; upgrade to our dual idlers. Your choice of 30%; 45%; or 60% gear reductions gives you the torque to tackle muddy creeks; rocky climbs; and everything in between.
What Is a Dual Idler?
Perfection takes time. After years of research and development; weve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box; the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears dont do a thing if theyre not mated perfectly; though. Precision CNC grinding ensures ours do. Our gears are made from the industrys toughest 9310 steel alloy. Didnt think dual idlers mattered? With GDPs quality and experience; they finally do.
Get the Gear Reduction You Need
You ride your Ranger XD 1500 your way; so choose the gear reduction that matches your style. A 30% gear reduction balances a big torque boost with a minor reduction in top speed. If you want to use bigger tires to dominate the mud hole or creep over rocks; choose a 45% reduction. For maximum power to run massive tires and conquer mud; 60% is the best option for you.
A Gear Reduction That Protects Your Drivetrain
When youre throwing all that extra weight around; you can beat your drivetrain to hell. GDP Portals put the gear reduction in the hub; so your entire drivetrain gets protected from extra wear. Plus; this Ranger XD 1500 portal gear lift maintains your factory suspension to give you cooler-running axles.
GDP Portals Are as Tough as They Get
These Ranger 1500 portals are designed for hard rides. We use 5/16 advanced steel alloy backing plates and durable aluminum housings to withstand any type of abuse.
- Our housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood—gear oil formulated for GDP Portals
- There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Advanced Gaskets; Seals; and Bearings
Our portals use:
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
Add a Frame Stiffener
A 6 portal lift and oversized tires can take your Polaris Ranger XD 1500 to the next level; but they also add extra stress to the machines frame. To keep your rig strong and ready for anything; we recommend installing a SuperATV Frame Stiffener when you add your new portals. Its tough enough to keep your frame from deforming under heavy use.
Top-Rated Customer Service
Still need a little help getting exactly what you need? No worries—weve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.
Kit Includes:

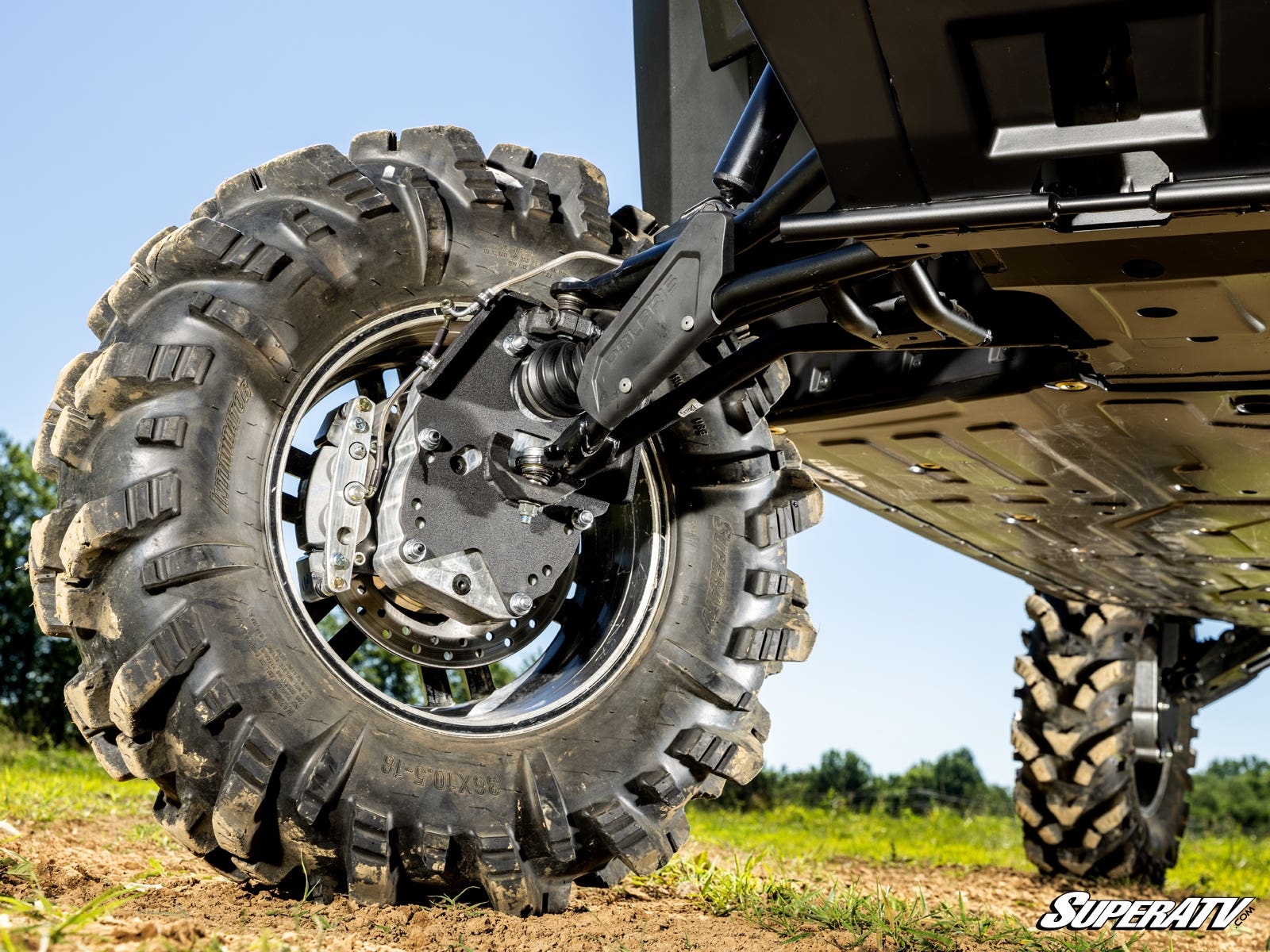

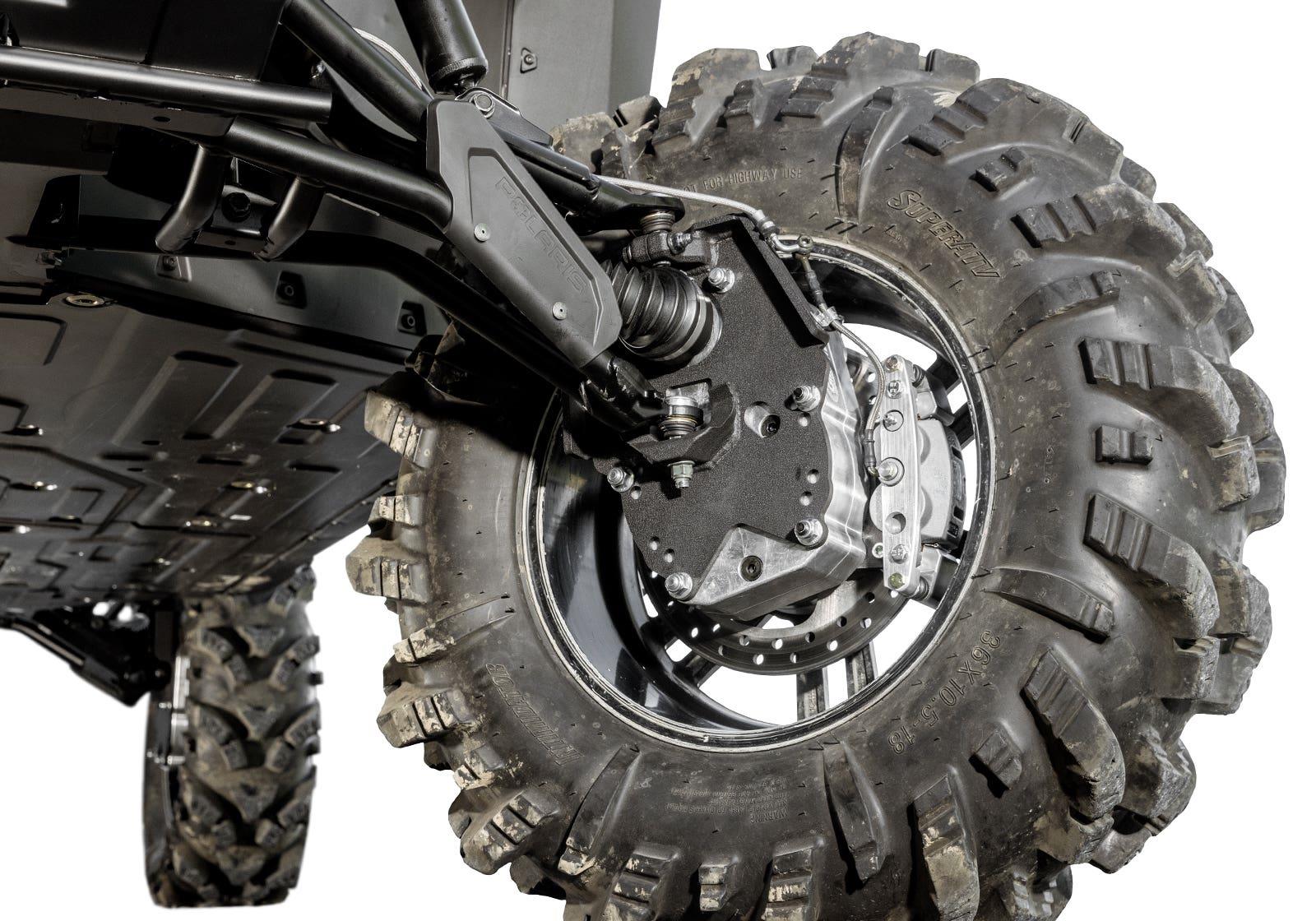

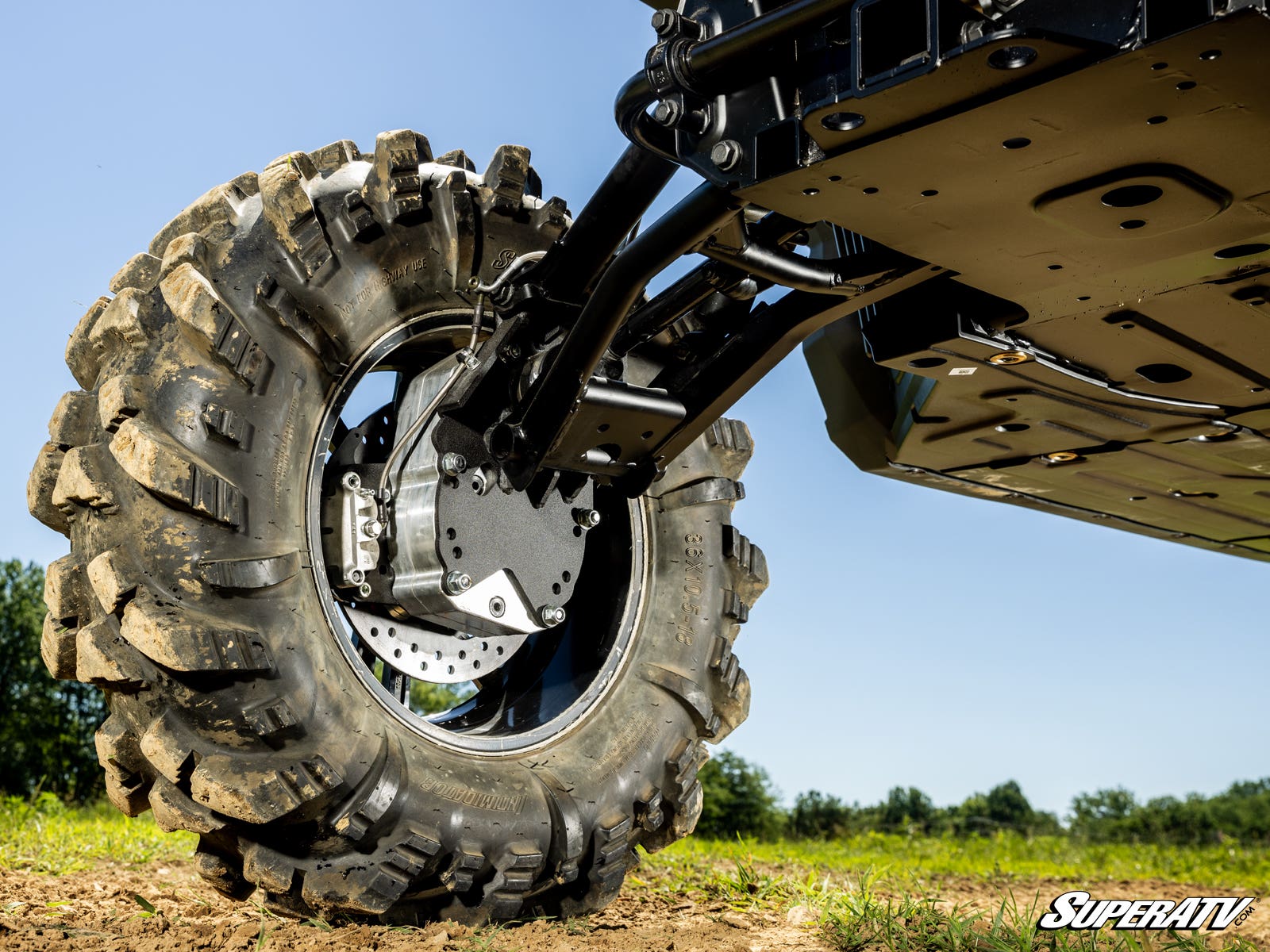

- (4) Assembled portal hub complete with 9310 gears; seals; output shaft; advanced gaskets; and thrust bearings
- (4) Universal hubs and stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (8) Caliper mounting plate shims
- (2) Front caliper adapter plates
- (2) Front caliper slide pin adapters
- (4) Brake pad retaining clips
- (2) Steel steering arms
- Extended brake lines
- All required hardware; including recessed castle nut socket
- Frame stiffener (optional)
| Max Tire Size Recommendations for 6 Portal Gear Lift | ||
|---|---|---|
| Max Tire Size | Required Suspension Setup with 6 Portals | 34 | Stock suspension | If you need help figuring out which gear reduction is right for you; check out our portal gear reduction calculator . | Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub; larger tire sizes can be used. |
Patent # 11;299;042
Patent # 11;318;787
Fitment
- Polaris Ranger XD 1500 Premium : 2024+
- Polaris Ranger XD 1500 NorthStar Premium : 2024+
- Polaris Ranger XD 1500 NorthStar Ultimate : 2024+
- Polaris Ranger Crew XD 1500 Premium : 2024+
- Polaris Ranger Crew XD 1500 NorthStar Premium : 2024+
- Polaris Ranger Crew XD 1500 NorthStar Ultimate : 2024+
Wheel Requirements:
- 18 or larger wheel required
- 20 and larger wheels cannot exceed 5 backspacing
